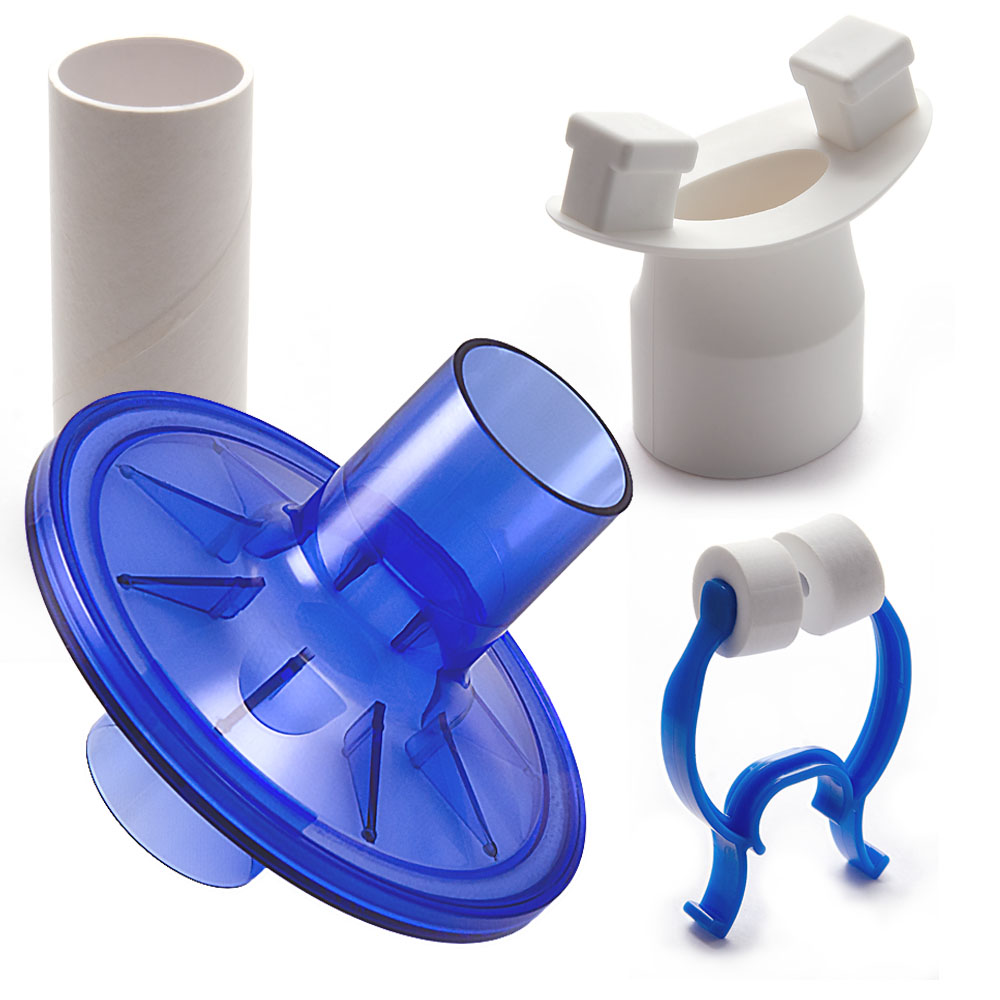

VBMax 30毫米标准PFT套件，蓝色泡沫鼻夹和橡胶吸嘴

Spirobank II Smart Display 160 x 80 pixels Power supply 3.7 V, 110 mA Li battery, USB rechargerable Keypad 6-key membrane keyboard Data transmission USB + Bluetooth® Smart Dimensions device 160 x 55 x 25 mm Weight (w/ battery) 145 g Flow measurement ± 16 L/s Volume accuracy ± 3% or 50 mL Flow accuracy ± 5% or 200 mL/s Temperature sensor semiconductor (0-45°C), automtic BTPS conversion SpO2 measurement Optional: 0-99% SpO2 accuracy Optional: ± 2% between 70-99 %SpO2 Pulse Rate measurement Optional: 18-300 BPM Pulse Rate accuracy Optional: ± 2 BPM o 2% whichever is greater Configurable alarms ON-OFF Optional: SpO2 and pulse rate Min-Max, finger/sensor inserted, battery, out of energy Main spirometry parameters Using iPad software FVC, FEV1, FEV1/FVC%, PEF, FEF25–75 Additional spirometry parameters Using PC Software via USB, FVC, FEV1, FEV1/FVC, FEV1/VC, PEF,, FEF25, FEF50, FEF75, FEF25–75,, FEF75–85, Lung Age, Extrap. Volume,, FET, Time to PEF, FEV0.5, FEV0.5/FVC,, FEV0.75, FEV0.75/FVC, FEV2,, FEV2/FVC, FEV3, FEV3/FVC, FEV6,, FEV1/FEV6, FIVC, FIV1, FIV1/FIVC,, PIF, FIF25, FIF50, FIF75, FEF50/FIF50,, VC, IVC, IC, ERV, IRV, Rf, VE, VT, tI, tE,, VT/tI, tE/tTOT, MVV (measured), MVV, (calculated) Oximetry Parameters Optional %SpO2 and Pulse Rate (Min, Max, Average) Windows Software Winspiro PRO® Bluetooth Smart Oximeter Optional Battery charger Optional ">

Power supply: Rechargeable battery and mains power

Temperature sensor: semiconductor (0-45 °C)

Flow sensor: bi-directional digital turbine

Flow range: ±16 L/s

Volume accuracy: ±3% or 50 mL

Flow accuracy: ±5% or 200 mL/s

Dynamic resistance: <0.5 cmH2O/L/s

Connectivity: USB 2.0, Bluetooth®2.1

Display: 7inch colour touch screen LCD, 800x480 resolution

Mouthpieces: ∅ 30 mm (1.18 inch)

Dimensions: 220 x 210 x 51 mm (8,66 x 8,26 x 2 in)

Weight: 1,450 g (battery pack included) (3,1 lb)

">

Vitalograph In2itive Spirometer Specifications Subjects Automatic population of database from Spirotrac. Name, ID; Age, Height, Gender; Smoking status, Body Mass Index and more depending on model. Storage of up to 10,000 subjects Environmental Data Selectable: Temperature (built in sensors), Barometric pressure, altitude, humidity Test types Single breath tests, flow/volume loops, multi-breath testing, tidal breathing and combined VC/FVC type test methods supported Selectable Parameters (depending on model) VC; IVC; IC; VT (TV); TLC; RV; IRV; ERV; FRC; FVC; FIVC; FEV1; FEV3; FEV6; FVC; FEV1/VC; FEV1/FVC; FEV3/VC; FEV3/FVC; FEV1/FEV6; FEF75; FEF50; FEF25; FEF25-75; FEF25-75/FVC; FIV1; PIF, FIV1/FIVC, FIF25, FIF50, FIF75, FEF50/FIF50, FET, MVVind, FEV1 Ratio; FEV0.5; PEF L/min; PEF L/s; FEF 0.2-1.2; FEF 75-85%; FEF25%; FEF50%; FEF75%; FMFT; FIF25%; FIF50%; FIF75%; PIF; FEV0.75; Lung Age and more Predicted Values Selectable (depending on model) ERS/ECCS; NHANES, Polgar, Pereira, Berglund, Forsche, Gutierrez, Hedenström, Taiwan; Knudson, Crapo; Hsu; KNLW; Viljanen; SEPAR; Gulsvik; SBPT; Tamura; Ip; Quanjer; Wang; Dockery and more Suggested Interpretation User selectable Flow Technology Fleisch Pneumotachograph (No3 size) Resolution 10 mL volume; 0.01 L/s flow Data Storage Stores up to 10,000 subjects and hundreds of test sessions Accuracy when in Operating Range Volumes: Better than ± 3% (Max 10L / Min 0L); Flows: Better than ± 10% (Max 16L/s / Min 0.02L/s); Linearity: ± 5% in range 0.1 L/s to 16 L/s PowerSAFE: Input 100 - 240V AC 50-60Hz, output 5V DC Battery Pack Rechargeable Lithium Polymer 3.7 v 2000 mAH Dimensions Device: 160 mm x 100 mm x 45 mm (with flowhead attached) Net Weight Device: 230 g Gross Weight and Size (Packed) Weight: 1.5 kg, Packed Size: 213 mm x 199 mm x 158 mm Storage Humidity 10% to 95% Storage Temperature 0°C to 50°C Recommended Operating Temperature Range 17 to 37°C; Design Limits 10°–40°C Ambient Humidity 0% to 99% Connectivity USB 2 Max Test Duration 20s FVC; 30s VC Performance Standards ISO 26782:2009, ISO 23747:2007, ATS/ERS 2005 Safety Standards IEC 60601-1:2005 Medical Safety Standard Medical Devices Directive 2007/47/EC Designed & Manufactured Under ISO 13485:2003, FDA 21CFR820, CMDR ">

Vitalograph Micro Specifications Parameters MeasuredVC, FVC, FEV1, FEV1R, PEF L/s, PEF L/min, FEF25-75, FEF75-85, EVC, IVC, FIVC, FIVC/FVC, FEV.5, PIF L/s, FMFT, FET, FEV.5/FVC, FEV.75, FEV.75/FVC, FEV1/VC, FEV1/IVC, FEV1/FVC, FEV1/FIVC, FEV1/FEV6, FEV1/PEF, FEV3, FEV3/FVC, FEV6, FEF25, FEF50, FEF75, FEF0.2-1.2, FEF 25-75/FVC, FIV1, FIV1/FIVC, PIF L/min, FIF25, FIF50, FIF75, FIF50-FEF50, FIF50-FEF50, MVVind, Rind, Vext, Vext/FVC, FEV1/EVC Operating Temperature RangeATS/ERS Limits: 17–37 °C Design Limits:10–40 °C Storage Temperature0–50 °C Storage Relative Humidity10%–95% Battery4 x 1.5 AAA alkaline non-rechargeable Power Supply5V USB power supplied by mini USB cable Measuring PrincipleFleisch type pneumotachograph AccuracyBetter than ± 3% volumes (or 0.05L) Max. volume 9.99L, Min. volume 0.01L Flow Accuracy when Operated in Operating Temperature Range ConditionsFlow ±10%, Max. flow rate ±16 L/s, Min. flow rate ±0.02 L/s CommunicationsUSB User InterfaceTouchscreen colour LCD, power button Volume DetectionFlow integration, sampling @100Hz Maximum Test Duration90 seconds Maximum Displayed Volume10 L LinearityBetter than ±3% Power5 Watts PrinterUse Vitalograph Reports to print to pdf Range0 - 9.99 L BTPS Flow ImpedanceBetter than 0.15 kPa/L/s at 14 L/s DisplayReflective LCD Size145 x 70 x 40 mm Weight165 g net Performance StandardsEN ISO 23747:2009, ISO 26782:2009, ATS/ERS 2005 ATS/ERS:2005 Guidelines Safety StandardsEN ISO 60601-1:2005 Medical Safety StandardMedical Devices Directive 2007/47/EC Designed & Manufactured UnderISO 13485:2003 and 2016 , FDA 21 CFR 820 , CMDR , SOR 98/282 , JPAL ">
