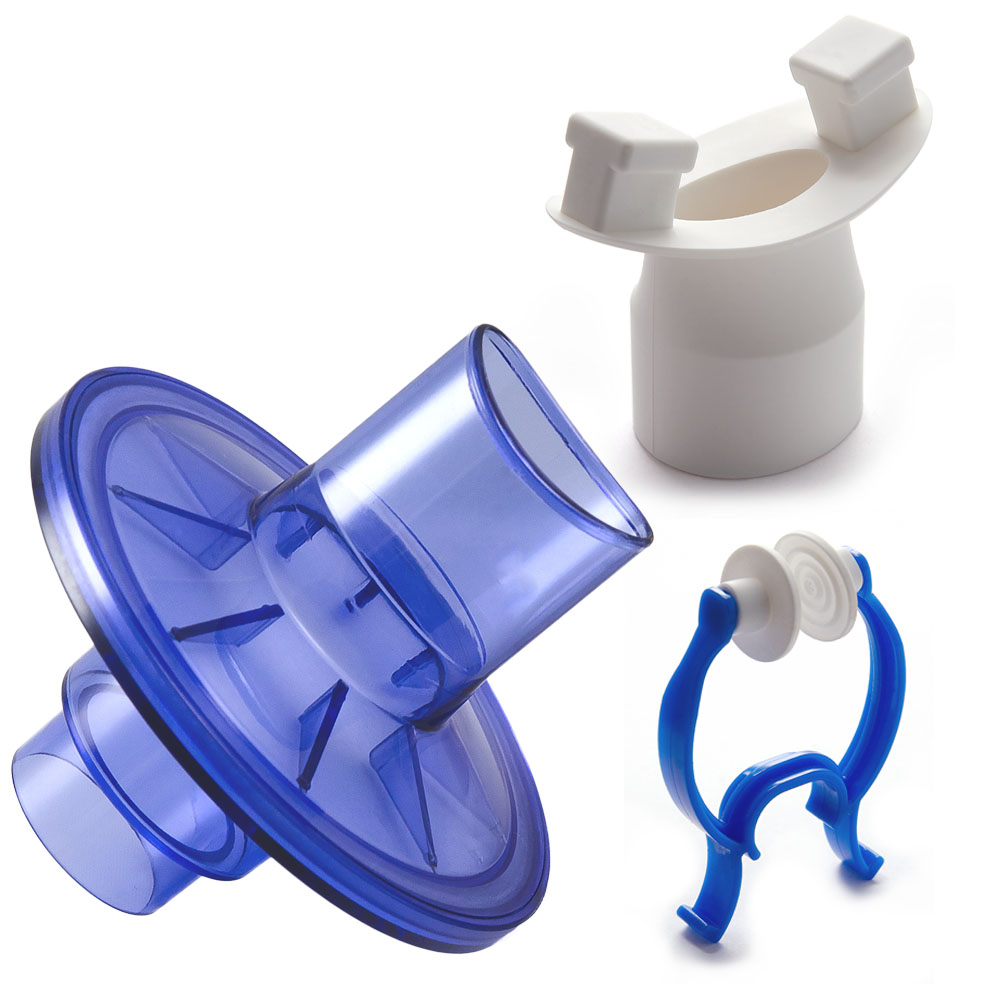

VBMax 28毫米e系列PFT套件，带蓝色橡胶鼻夹和橡胶吸嘴

Astra 100 Astra 200 Astra 300 Parameters FVC, FEV1, FEV6, FEV1/FVC, FEV1/FEV6, PEF FVC, FEV.5, FEV1, FEV3, FEV6, FEV1/FVC, FEV1/FEV6, FEV.5/FVC, FEV3/FVC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF 75-85, FET, FEV1/FEV.5, FEV1/PEF, MIF50, FIVC, FIV1, FIV1/FVC, FEV1/FIV1,PIF, MTT, PEV/PIF, Lung Age.
MVV: Br/min
VC: VC, TV, ERV, IRV, IC, Ti, Te, Tt, Ti/Tt FVC, FEV.5, FEV1, FEV3, FEV6, FEV1/FVC, FEV1/FEV6, FEV.5/FVC, FEV3/FVC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF 75-85, FET, FEV1/FEV.5, FEV1/PEF, MIF50, FIVC, FIV1, FIV1/FVC, FEV1/FIV1,PIF, MTT, PEV/PIF, Lung Age
MVV: Br/min
VC: VC, TV, ERV, IRV, IC, Ti, Te, Tt, Ti/Tt Maneuvers per patient N/A 5 total; best test and last test highlighted 5 total; best test and last test highlighted Predicted set Hankinson (NHANES III) Selectable — 14 Total Selectable — 14 Total Interpretation Ferguson (NLHEP) Selectable — Kory, Miller, ATS, NLHEP (Ferguson) Selectable — Kory, Miller, ATS, NLHEP (Ferguson) Ethnic correction Caucasian/Hispanic/AfroAmerican Selectable — % Actual, Caucasian, Hispanic, AfroAmerican Selectable — % Actual, Caucasian, Hispanic, AfroAmerican Language N/A Selectable — English or Spanish Selectable — English or Spanish Hardware Specifications Keyboard 5 Keys 5 Keys Alphanumeric LCD touchscreen Communication port USB to printer USB to printer and PC, RS232 Optional: Bluetooth to PC USB to printer and PC, RS232 Optional: Bluetooth to PC Printer PCL6 Drivers via USB PCL6 Drivers via USB PCL6 Drivers via USB Dimensions 5.75" x 3.25" x 4.0" 5.75" x 3.25" x 4.0" 5.75" x 3.25" x 4.0" Weight 9 oz (250 g) 9 oz (250 g) 9 oz (250 g) Power Supply 2 x 1.5 DC Alkaline or NiMH batteries 2 x 1.5 DC Alkaline or NiMH batteries 2 x 1.5 DC Alkaline or NiMH batteries Storage >150 studies >150 studies 1000+ studies Precision of Measurements (BTPS) At highest volume ±3% or 50 mL At highest flow ±5% or 150 mL Time related precision 0.5% Volume resolution <6 mL Sampling frequency 50 Hz Measurement Scale (BTPS) Flow range 0—16 L/sec Volume 0—10 L Measurement method Infrared Interruption via Digital Turbine Dynamic flow resistance: <1.5 cm H20/L/sec @ 14 L/sec ">

Communication: USB to printer and PC, RS232, HL-7*

Dimensions: 7.7" x 10.6"x 3.9"

Weight: 3.7 lbs.

Power supply: 110 to 240V, 50 to 60 Hz or NiMH battery pack

Storage Temperature: -4 to 158 °F

Printer: 110 mm thermal graphic printer

Optional

• Ethernet I/O
• Bluetooth to PC
• Flex Pulse Oximetry module and program (ask for indices)
• NiMH battery/charger pack
• Calibration syringe
• MIP/MEP
• Weather Station (Barometric Pressure, Temperature, Humidity)
• Sniff -- Rhinomanometry
• Carrying Case

">

Astra BT Spirometer Specifications Forced Parameters Measured Forced vital capacity: FVC, FEV1, FEV1/FVC, PEF, FEF50%, FEV6, FEV1/FEC, PEF, FEF25-75%, FEV6, FEV1/ FEV0.5, PEFT, Vext, FIVC, FIF50%, FEF50/FIF50, QC Grades, FEV3, FEV0.5, FEV0.5/FVC, FEV3/FVC, FEV1/VC, FEV1/FEV6, FEV1/PEF, FEV1/FIV1, PEF/PIF, FEV25%, FEF25%, FEF75%, FEF75-85%, FET25-75%, FET100, FIV1, FIV1/FVC, PIF, MTT, MVV Ind, Lung age MVV: MVV, Br./min Bronchoconstriction: FVC, FEV1, PEF, FEF25-75%, PDX Relaxed Parameters Measured VC: VC, TV, ERV, IRV, IC, Ti, Te, Tt, Ti/Tt Maneuvers per patient: 8 Total; Best test and last test highlighted Interpretation: Kory, Miller, ATS, NLHEP (Ferguson) Predicted sets: GLI/QUANJER, SEPAR 2013, ERS, KNUDSON, CRAPO, ZAPLETAL, MORRIS, AUSTRIA, GUTIERREZ, CASTRO - PEREIRA 2002, POLGAR-WENG, HANKINSON-NHANES III, PEREZ-PADILLA, A.J. CRUZ GOLSHAN, GARCIA RIO, CANDELA, PLATINO, THAI 2000, CASTRO PEREIRA 2007 Ethnic correction: % Actual, Caucasian, Hispanic, African-American Language: English, Spanish, French Measurement Scale (BTPS) Flow range: 0–16 L/sec Volume: 0–10 L Measurement method: Infrared Interruption via Digital Turbine Dynamic flow resistance: < 1.5 cm H20/L/sec @ 14 L/sec Measurement Precision (BTPS) At highest volume: ± 3% or 50 ml At highest flow: ± 5% or 150 ml Time related precision: 0.5% Volume resolution: < 6 mL Sampling frequency: 100 Hz Power, Ports, and Dimensions Batteries 2 Alkaline AAA batteries, or 2 rechargeable AAA batteries Connectivity: Bluetooth 2.0, USB 2.0, USB 3.0 Weight: 6 oz (173 g) Dimensions: 7.1 x 3.5 x 2.0 in (18 x 9 x 5 cm) ">
